6AV2124-0UC24-0BX0 Siemens

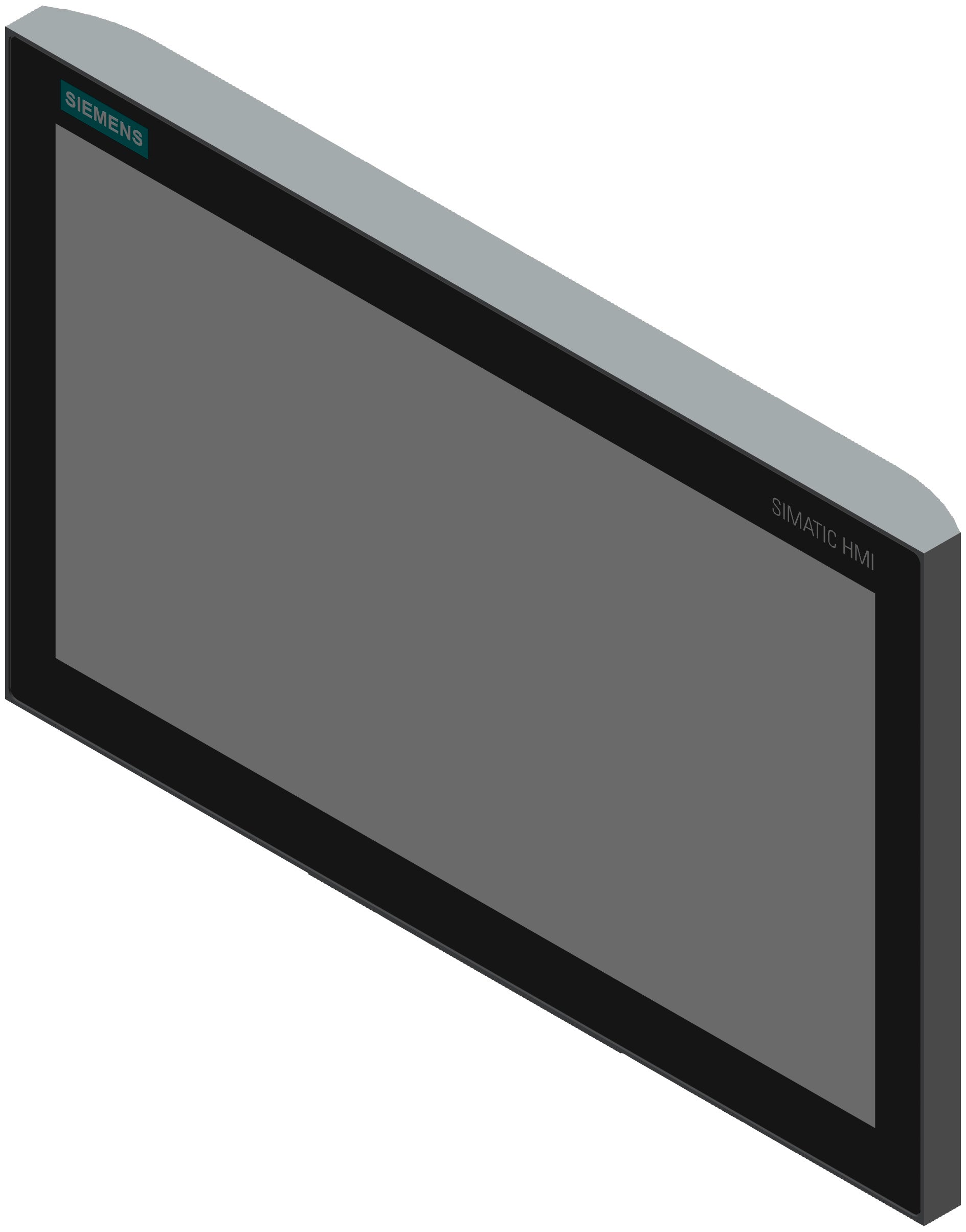

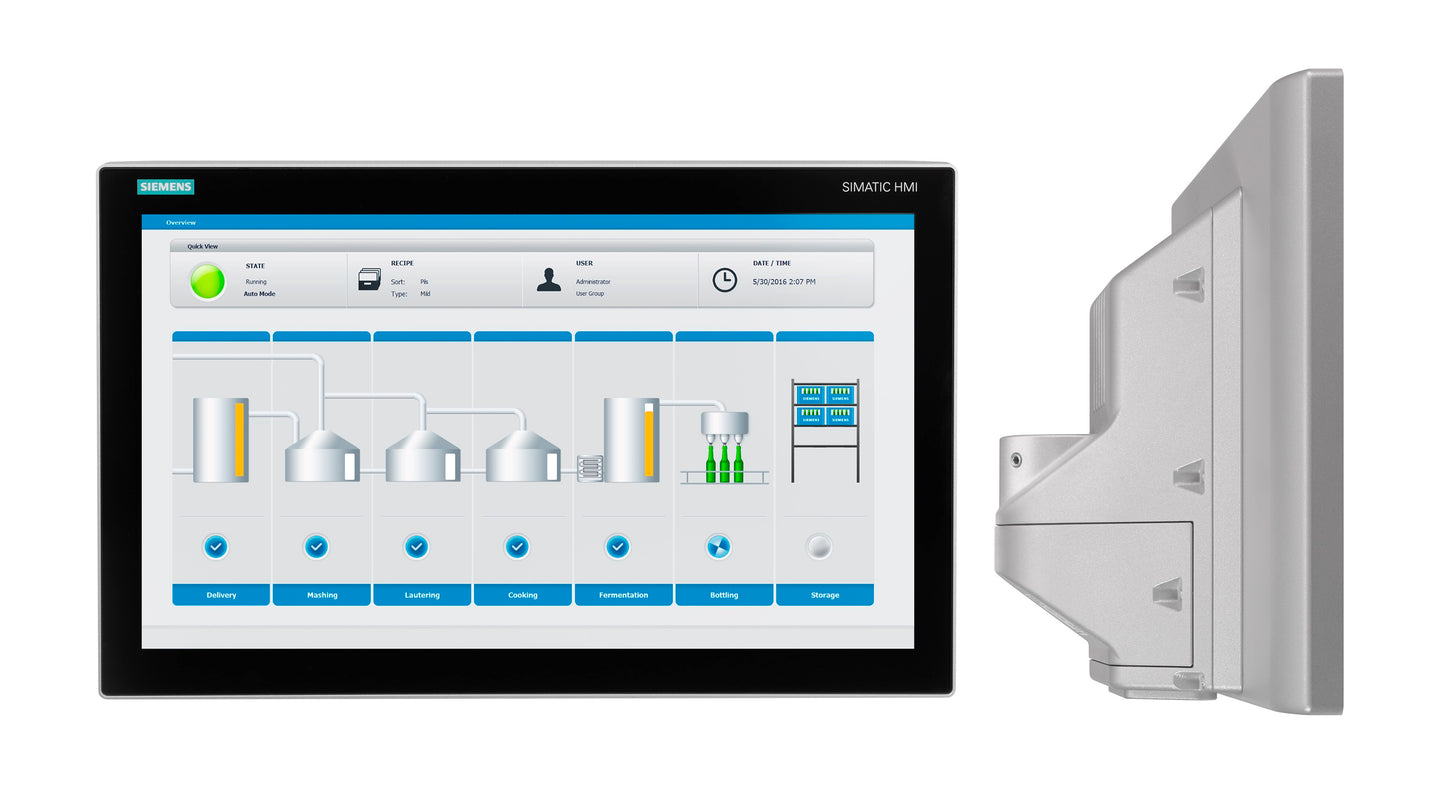

The 6AV2124-0UC24-0BX0 is a Siemens SIMATIC HMI TP1900 Comfort Pro Panel, designed for mounting on a support arm system (expandable, round pipe) with an optional extension unit. Featuring an expansive 19-inch widescreen TFT display with support for 16 million colors, it provides exceptional clarity and usability for advanced industrial applications.

Key specifications:

• Touchscreen Operation: Intuitive and responsive interface for seamless control
• Display: Large 19-inch widescreen TFT with vibrant color rendering
• Mounting: Compatible with support arm systems and expandable via an optional extension unit
• Connectivity: Integrated PROFINET and MPI/PROFIBUS DP interfaces for flexible automation network integration
• Configuration Memory: 24 MB, supporting complex and detailed applications
• Operating System: Runs on Windows Embedded Compact 2013 (WEC 2013) for modern and stable performance
• Software Compatibility: Configurable with WinCC Comfort V14 SP1 or later, with HSP (Hardware Support Package)

The TP1900 Comfort Pro Panel is tailored for demanding industrial environments, offering robust functionality, advanced visualization, and the flexibility to integrate with Siemens automation systems in support arm-mounted configurations.
